Pumps and Hydraulic Turbines Design and Optimization





The inverse design method can be applied to all types of axial, mixed flow and centrifugal pumps and hydraulic turbines. Our software enables design of high efficiency stages at multiple operating points with direct control of cavitation.



Our TURBOdesign Suite software applies the 3D Inverse Design method to the design of pumps and hydraulic turbines. With inverse design you can optimize performance, increase efficiency and reduce development time by putting designers in direct control of the aerodynamic design process.


Breakthrough Diffuser Designs



3D Inverse design method allows direct control of 3D pressure field and hence can be used to eliminate the corner separation in Vaned bowel diffusers, which results in significant reduction in stage efficiency particularly in multistage applications.

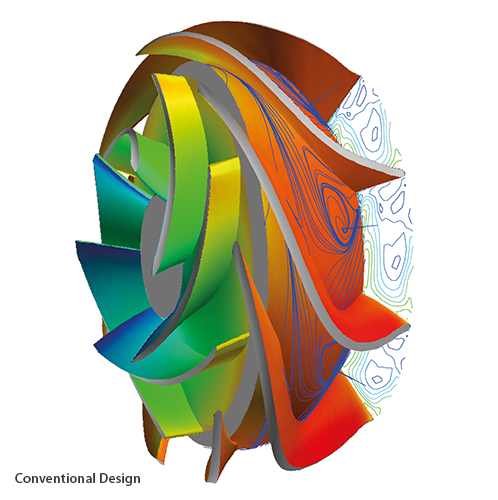

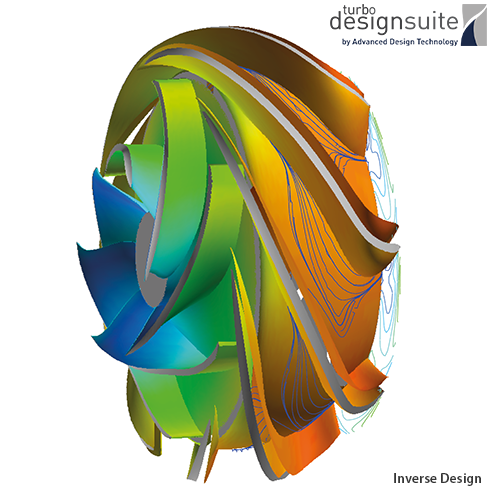

See below a comparison between conventional design versus CFD results of TURBOdesign1.


Pump Applications



A brief summary introduction to the different pump applications you can use TDS for.

Hydraulic Turbine Applications



A brief summary introduction to the different hydraulic turbine applications you can use TDS for.
