Development of New Vertical Line Shaft Pumps

Introduction

International technology Group ANDRITZ is a globally leading supplier of plants, equipment, and services for hydropower stations, the pulp and paper industry, solid/liquid separation in the municipal and industrial sectors, the steel industry, and the production of animal feed and biomass pellets. The publicly listed company is headquartered in Graz, Austria, and operates over 180 production sites as well as service and sales companies all around the world.

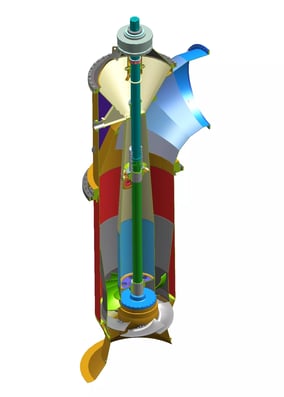

Pump assembly model of a vertical line shaft pump with adjustable impeller blades
Pump assembly model of a vertical line shaft pump with adjustable impeller blades


The Pumps Division of the ANDRITZ GROUP develops and manufactures customized large pumps and standard centrifugal pumps for a wide range of different applications and industries:

  • water transport and irrigation
  • energy sector (e.g. cooling water and flue gas desulphurization pumps)
  • the pulp and paper, sugar, and bio-ethanol industries

Many years of experience in hydraulic machinery construction and comprehensive process know-how form a solid footing for the high performance standards met by ANDRITZ Pumps.

ANDRITZ is a single-source supplier – from development to model tests, from design to manufacture and project management, to after-sales service and training.ANDRITZ has developed a modern design system consisting of CAD-based geometry definition, hydraulic optimization by means of numerical flow simulation, and finally analysis of mechanical behavior.

For an initial impeller or guide vane design, TURBOdesign1 is now extensively used within ANDRITZ. Our experience is that TURBOdesign1 provides good solutions in a very short period of time, especially when starting from scratch.

The hydraulic behaviour is then evaluated by solving the full 3D-Navier-Stokes equations in combination with a robust turbulence model.

Based on the initial TURBOdesign1 solution, the blade profile is further optimized by experienced designers and interaction with the stationary components (e.g. casing) must be tuned. Finally, the progress in hydraulic design is verified by model test results.

"Our experience is that TURBOdesign1 provides good solutions in a very short period of time, especially when starting from scratch"

Design Procedure

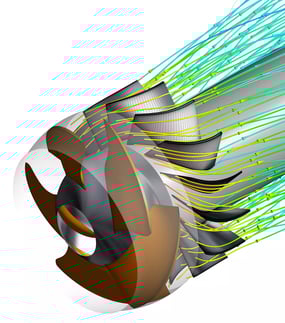

CFD pump model
CFD pump model



ANDRITZ has developed a modern design system consisting of CAD-based geometry definition, hydraulic optimization by means of numerical flow simulation, and finally analysis of mechanical behavior.

For an initial impeller or guide vane design, TURBOdesign1 is now extensively used within ANDRITZ. Our experience is that TURBOdesign1 provides good solutions in a very short period of time, especially when starting from scratch.

The hydraulic behavior is then evaluated by solving the full 3D-Navier-Stokes equations in combination with a robust turbulence model.

Based on the initial TURBOdesign1 solution, the blade profile is further optimized by experienced designers and interaction with the stationary components (e.g. casing) must be tuned. Finally, the progress in hydraulic design is verified by model test results.


Application of TURBOdesign1 to Pump Design



TURBOdesign1 was introduced at ANDRITZ for hydraulic development of a new vertical line shaft pump (Fig. 1). This type of pump is typically used for irrigation and the cooling water supply to thermal power plants.

Due to changing requirements, the pump operating range had to be shifted to higher flow rates and higher heads. Thus, there was a need to develop new runner blades and new guide vanes.

The hydraulic designs were verified by computational fluid dynamics (CFD,) including all flow-relevant components (s. Fig. 2).

"TURBOdesign1 considerably supported ANDRITZ Pumps in accelerating the hydraulic design process"

Result

An extensive series of measurements was carried out in the ANDRITZ in-house hydraulic laboratory (ASTRΓ–) on a fully homologous model. These experiments provided performance data (flow rate, head, power, efficiency), cavitation observations, hydraulic forces (axial thrust, radial force, and momentum) and stability limits (e.g. pressure pulsations).

Compact Design:

Compared with the old reference pump, the new design is characterized by a smaller size and by significantly higher blade loading, hence providing greater head and flow rate. Furthermore, the efficiency at the design point (OP1) could be improved.

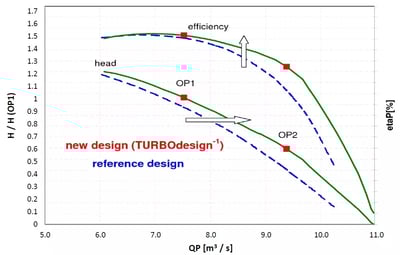

Model test result: Head and efficiency, comparison with reference design
Model test result: Head and efficiency, comparison with reference design


Enhancement of Cavitational Limits:

Regarding cavitation, the NPSH required curve of the reference design had to be shifted to higher flow rates in order to avoid pressure side cavitation in start-up condition.


Finally, the new design fulfilled the fundamental condition NPSHplant β‰₯ NPSHrequired for the whole operating range and the measurements were completed with a successful acceptance test, witnessed by our customers.

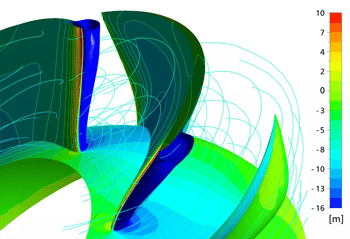

CFD result, reference design (old) at OP2: Pressure field and ISO surface of cavitation on the impeller blade surface
CFD result, reference design (old) at OP2: Pressure field and ISO surface of cavitation on the impeller blade surface

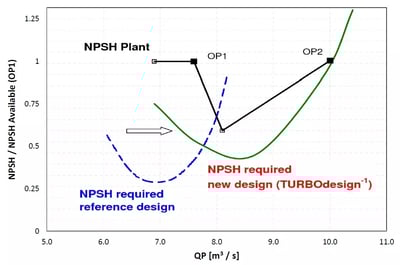

Model test result: NPSH, comparison with reference design
Model test result: NPSH, comparison with reference design

In conclusion, the TURBOdesign1 considerably supported ANDRITZ Pumps in accelerating the hydraulic design process.
